How to Clamp Odd-Shaped Wood Without Damaging It

Key Takeaway: To clamp odd-shaped wood without damaging it, do three things: use a conforming jaw that matches the shape of the piece, use a soft jaw material that won't dent or mark the grain, and use a vise that repositions to match your working angle instead of forcing the piece into a fixed jaw. Grip comes from contact area — a jaw contacting 80% of the surface holds dramatically better than one contacting 20% at the same clamping force.

The Old Way: Fighting Irregular Wood with Flat Steel Jaws

Clamping a perfect square of wood is easy. But real woodworking is curved legs, turned spindles, live-edge slabs, angled tenons, carvings, and branch wood — and the moment your plane bites, the piece rotates out of the vise, taking a chunk of your project with it. So you crank the handle harder, and now the steel jaw edges have dug crescents into the grain. A flat jaw contacts an irregular workpiece at only two or three points. That's not a grip — it's a fulcrum.

Why Do Flat Vise Jaws Fail on Irregular Shapes?

Grip strength comes from surface contact area and friction. A flat steel jaw touching only the high points of a curved piece concentrates all the clamping force on those points — which is why the piece both rocks under lateral force and gets marked where the pressure concentrates. More force doesn't fix it; it just makes the marks deeper. Fixing the contact area does.

How Do You Clamp Irregular Wood Shapes?

1. Use conforming jaws

The IQ Vise Jaws™ – Sure-Fit™ are designed specifically for irregular or non-parallel surfaces. The jaw face conforms to the shape of the workpiece, distributing clamping force evenly across the contact area — eliminating rocking and dramatically increasing grip on curved or irregular pieces.

2. Use soft jaw material

The IQ Vise Jaws™ – Leather are the woodworker's answer for finished or delicate surfaces. Full-grain leather compresses into the surface texture without denting the wood fibers, and it won't leave the linear marks rubber or plastic inserts can. For unfinished wood headed for paint or finish, the IQ Vise Jaws™ – Flex-Fit™ conform to shape while providing a firm, stable grip.

3. Position the vise to match the work

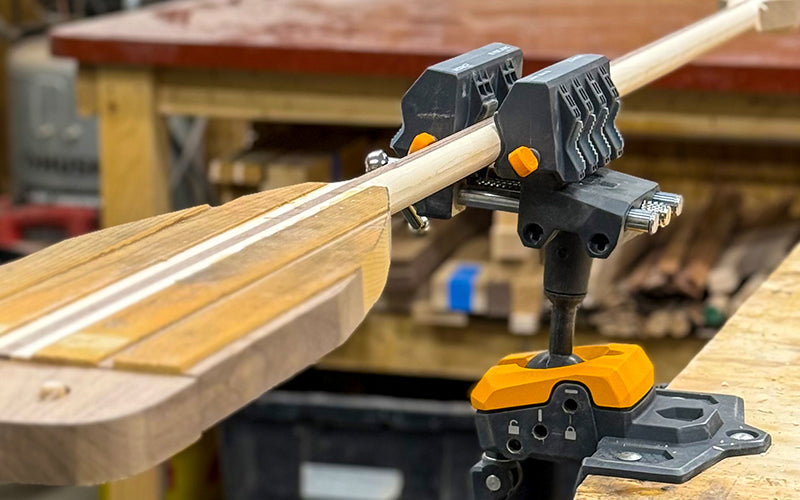

The IQ Vise System is built on a ball-and-socket articulating base that rotates the workpiece on three axes and locks at any angle with a single Quick-Cam™ lever throw. Need to plane an angled face? Tilt the vise so the face sits horizontal — instead of angling your body and your plane to compensate. Unlike a fixed jaw that you shim and re-shim, the jaw angle sets in seconds.

In Summary: Odd-shaped wood needs contact area, not clamping force. Conforming IQ Vise Jaws™ – Sure-Fit™ match the shape, leather jaws protect the surface, and the IQ Vise System's articulating base tilts the work to your tool's angle — so the piece stays put and stays clean.

Techniques for Specific Irregular Shapes

Spindles and turned work: Grip across the widest diameter with soft or leather jaws. For very thin or fragile spindles, back up the piece with a wooden shim inside the jaw.

Curved cabinet parts: Tilt the vise jaw to match the curve's tangent at the contact point — you get a flat bearing surface for planing or routing.

Live-edge slabs: Pad the jaw with a flat offcut clamped against the irregular edge. The offcut bridges the surface and transfers force evenly.

Carved or sculpted pieces: Wrap in leather or felt before clamping. For extremely delicate carvings, consider a sandbag or moldable insert.

Angled tenons and joinery: Tilt the vise to present the joint face squarely — infinitely faster than shimming a fixed jaw.

What Not to Do

• Don't over-tighten to compensate for poor grip. More force on a bad contact area just makes the marks deeper. Fix the contact first.
• Don't use steel jaws on finished wood. Even light clamping leaves marks at the jaw edges.
• Don't clamp end grain without support. End grain compresses easily and can split under pressure without lateral support.

Frequently Asked Questions

How do I hold irregular wood pieces in a vise?

Use conforming jaws (like the IQ Vise Jaws™ – Sure-Fit™) that adapt to the shape of the piece, combined with soft jaw material (leather or felt) to prevent surface damage. A vise that tilts to match your working angle makes it easier to grip curved pieces without shimming.

Will vise jaws damage my wood?

Standard steel jaws can dent or mark wood, especially soft species or finished surfaces. Leather jaws, rubber pads, or polymer soft jaws prevent surface damage. Clamping through a scrap piece of flat wood also distributes force and prevents marks.

What are the best vise jaws for woodworking?

For finished or delicate surfaces, leather jaws provide non-marring grip. For irregular shapes, Sure-Fit™ or Flex-Fit™ conforming jaws distribute pressure evenly. Dedicated woodworking jaws with a wide, flat face work best for dimensional lumber and large flat panels.

Can I clamp curved wood in a standard vise?

Yes, but it requires shimming or padding the jaw to create a flat contact surface. An easier approach is conforming soft jaws, or a vise that tilts to match the angle of the curved surface.

How tight should I clamp wood in a vise?

Firm but not crushing — enough force that the piece doesn't move under working pressure, but not so much that you compress the fibers or risk splits. Soft jaws let you clamp firmly without damaging the surface, giving you more useful clamping range.
