How Gunsmiths Set Up Their Workbench (And What Vise They Use)

Key Takeaway: The best gunsmithing workbench setup is built around a multi-axis articulating vise with leather jaw inserts: precise, repeatable angle control for drilling scope mounts and fitting barrels, plus non-marring grip on blued steel, anodized aluminum, and finished stocks. A gunsmith's bench has one non-negotiable requirement — everything stays exactly where you put it.

The Old Way: General-Purpose Work Holding on Irreplaceable Parts

A firearm component that shifts during fitting, drilling, or staking can mean a ruined part, a dangerous firearm, or both. And the parts on a gunsmith's bench — receivers, stocks, barrels, triggers, small action parts — are a mix of hard steel, aluminum alloy, and finished wood: expensive to replace, often irreplaceable, and finished surfaces that matter aesthetically as well as functionally. A general metalworking vise with flat steel jaws treats all of that like rough stock. Gunsmiths take work holding seriously in a way most other trades don't, because they have to.

What Makes Gunsmithing Vise Requirements Different?

Non-marring grip on finished surfaces. A rifle stock, a blued barrel, an anodized receiver — these are finished goods. Steel jaw marks aren't acceptable; leather jaws are standard equipment.

Precise angle control. Drilling a scope mount hole, fitting a barrel to a receiver, or stoning a trigger must happen at exact angles. If the part shifts between setups, everything downstream is off.

Grip on irregular shapes. Stocks are contoured, receivers have irregular external geometry, and many action parts are machined to complex shapes. Conforming jaws handle these better than flat steel.

Low clamping force for small parts. Trigger components, springs, and pins must be held firmly for fitting but can't withstand heavy clamping force.

The WorkIQ Edge: The Recommended Gunsmith Vise Setup

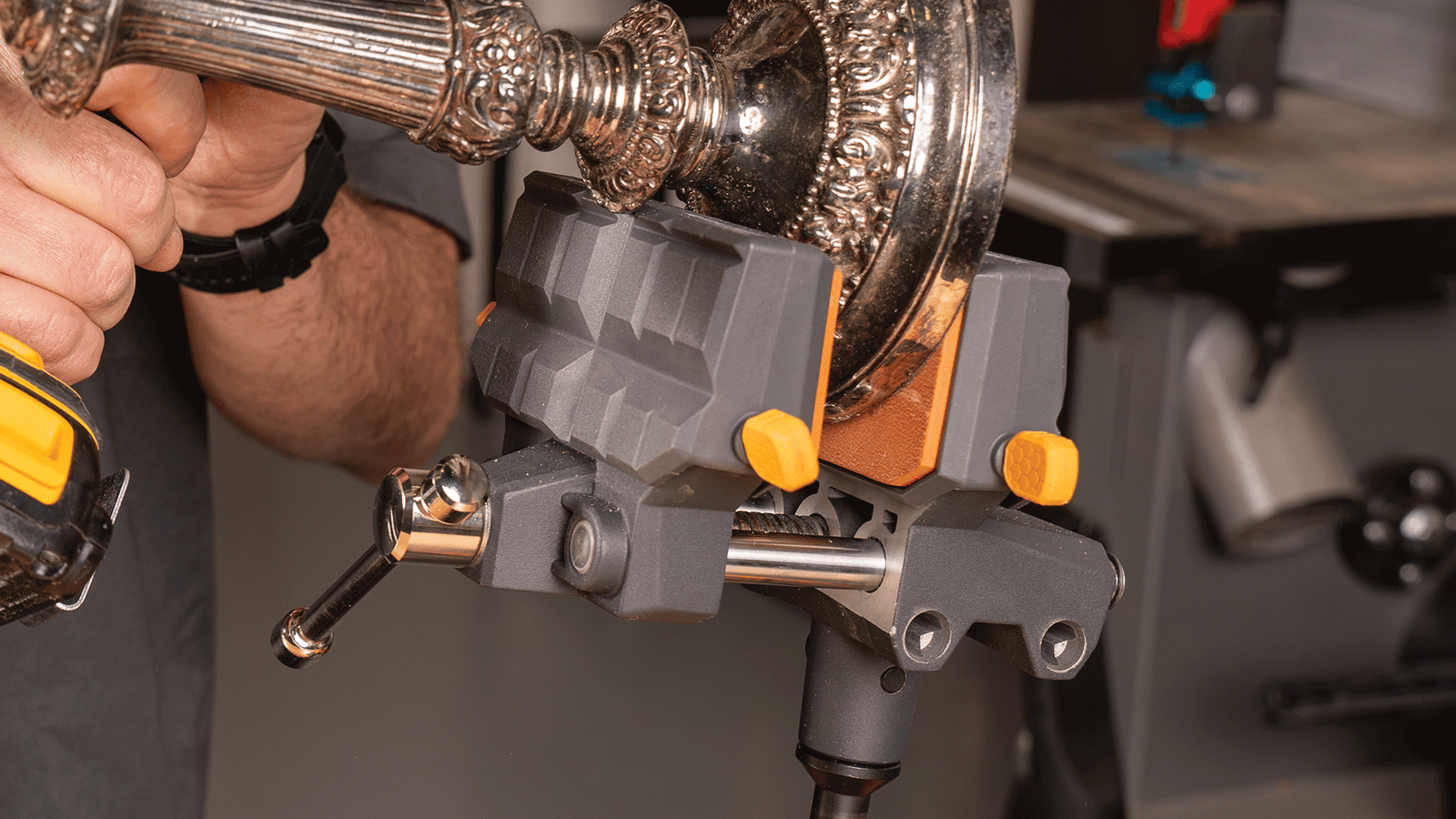

The IQ Vise System is a multi-axis work-holding platform built on a ball-and-socket articulating base that rotates the workpiece on three axes and locks at any angle with a single Quick-Cam™ lever throw. For gunsmithing, that means presenting the action, stock, or barrel at any angle without re-clamping — essential for drilling and tapping scope mounts, orienting a receiver for barrel fitting and threading, presenting a stock inlet at the correct angle for each cut, and rotating a trigger group through the orientations different actions require.

Jaw selection for gunsmithing

In Summary: Gunsmithing work holding comes down to two capabilities a standard bench vise doesn't offer: exact, repeatable angle control and non-marring grip across steel, alloy, and finished wood. The IQ Vise System's articulating base delivers the angles; leather, Pipe-Fit™, and Sure-Fit™ jaws deliver the grip — without a single mark on a blued or checkered surface.

How Professional Gunsmiths Use Their Bench Vise

Fitting and headspacing barrels. Barrel work requires the receiver held at the exact angle of the barrel's axis. Any twist in the setup introduces crosstorque into the barrel-receiver thread — which can bind the thread or result in improper headspace. Precise angle locking holds the receiver square to the threading operation.

Scope mount installation. Drilling and tapping scope mount holes requires the receiver exactly level and indexed to the bore axis. A drill press makes a straight hole — but only if the receiver is held at the correct angle. Gunsmiths pair levels and angle gauges with a multi-axis vise to get there.

Trigger work and action tuning. Polishing contact surfaces and adjusting sear geometry requires holding the trigger group firmly enough that nothing moves during stoning, but gently enough not to deform small components — exactly the job Sure-Fit™ jaws are made for.

Stock fitting and inletting. Fitting a stock to an action means holding the stock in one orientation after another as you cut inlet material and check fit. Leather jaws protect the finish while the vise tilts to present the inlet from any angle.

Gunsmith Bench Layout: 4 Recommendations

1. Bench height: Gunsmithing involves close examination of parts. Set the bench 2–4 inches higher than a standard woodworking bench — many gunsmiths work at 38–42 inches — so you're not hunching.

2. Lighting: The vise area needs excellent light. The IQ Connect system's LED light mounts directly at the vise, illuminating the work from inches away rather than feet.

3. Parts tray: Springs, pins, and detents disappear fast. A tray or magnetic mat at the vise jaw catches dropped parts, and a phone mounted via the IQ Connect accessory system keeps reference photos and tolerances at eye level.

4. Clean surface: Grit or chips on the bench scratch finished parts you set down momentarily. A rubber mat or bench paper provides a clean, soft surface.

Frequently Asked Questions

What is the best vise for gunsmithing?

A multi-axis articulating vise with leather jaw inserts is the standard recommendation. Precise angle positioning (critical for drilling scope mounts and fitting barrels) combined with non-marring leather jaws (essential for protecting finished components) makes this combination the most versatile for gunsmith bench work.

Do gunsmith vises damage blued finishes?

Standard steel jaws will mark blued or Parkerized steel even at moderate clamping force. Leather jaw inserts prevent this. Some gunsmiths wrap parts in leather or felt as an additional precaution.

What kind of lighting do gunsmiths use at the bench?

High-CRI LED task lighting positioned close to the work — often adjustable lights directed at specific components. A mount system that puts light at the vise rather than aimed from a wall or ceiling makes a significant practical difference for detailed fitting work.

How do gunsmiths hold a rifle stock in a vise?

With leather jaw inserts, gripping across the widest and most structurally sound section of the stock (typically through the action area). The vise is then tilted to present the inlet, barrel channel, or grip area at the correct working angle for each step of fitting.

Is a bench vise or gun vise better for gunsmithing?

A dedicated gun vise (padded rests holding the firearm assembled) is useful for cleaning, minor adjustments, and optic installation. For actual gunsmithing work — fitting, drilling, threading, action work — a proper bench vise with the right jaws offers better grip, more precise angle control, and more secure holding.
