How Jewelers and 3D Print Finishers Hold Small Parts Safely

Key Takeaway: The way to hold small parts in a vise safely is anti-slip jaw texture with conforming contact at low clamping force — not more pressure. A small part fails in a standard vise because flat steel jaws touch it at two points, so you have to crush it before friction alone will hold it. A conforming, high-friction jaw grips through surface contact instead, which is what lets a ring, a casting, or a resin print stay still under a file without deforming.

The Old Way: Crush It or Chase It

A ring bezel you're trying to set rolls in the jaws every time the pusher touches it. So you snug it down one more turn and now the band is out of round. A resin miniature you're cleaning up snaps at the ankle. A watch component pings off the bench and is gone into the floor forever. The piece is either too loose to work on or too tight to survive, and there seems to be no setting in between.

There isn't one — not with a flat steel jaw. The missing variable is friction, not force.

Why Don't Standard Jaws Work on Small Parts?

Each conventional option fails in its own way, and for small work the failures compound:

Flat steel jaws: contact a small part at two points. Almost no friction, and any force that creates grip also crushes or marks the piece.
Rubber pads: better friction than steel, but a uniform hardness that doesn't conform to irregular small shapes. The piece still rocks.
Helping-hands clamps: fine for soldering something light and static. Any real working force — filing, sanding, fitting — dislodges it.
Over-tightening anything: treats pressure as a substitute for contact area, which is the exact trade covered in the guide to clamping delicate materials.

What small work actually needs is a jaw face that grips without high clamping force, and that conforms to the shape of the piece rather than demanding the piece conform to the jaw. That principle sits at the centre of the modern work-holding guide.

How Sure-Fit Jaws Hold a Small Part

IQ Vise Jaws – Sure-Fit use an anti-slip surface texture that grips at low contact force. You are relying on the jaw surface to resist movement rather than clamping the part hard enough that it physically cannot move — a distinction that matters enormously once the part is small or fragile.

The jaw face also has moderate conformability, so it contacts across a small irregular piece instead of at two high points. For a ring, a small casting, or a printed component, the whole outer surface inside the jaw is in contact, not just the two widest points. More contact at less pressure is the entire trick.

Jewelry Work: Setting, Soldering, and Finishing

Ring and Bezel Work

Setting a stone requires the bezel to stay put while you push metal over it with a pusher or burnisher. That means axial stability — the ring must not rotate around its band axis — and lateral stability. Grip the band between Sure-Fit jaws, snug enough that it doesn't wiggle, light enough that you're not deforming it. For bezel setting on a flat-bottomed pendant or brooch, grip from the sides with leather or padded Sure-Fit jaws.

Soldering

Soldering jump rings, joining components, or attaching findings needs the piece at the exact angle that gives torch access and a clear view of the joint. With a multi-axis vise the sequence is: grip the piece, rotate the head to the best torch angle, confirm the joint is positioned, then solder with both hands free.

Finishing

Filing, sanding, and polishing small castings need the piece stable under lateral force. Sure-Fit holds without the jaw pressure that would deform soft metal. For polishing, grip the sturdiest section and present the surface to the wheel at the right angle rather than fighting it by hand.

3D Print Finishing

Support Removal

Supports are the most fragile stage of a print — they are designed to break, and the print is not. Grip the print body in Sure-Fit jaws at low clamping force with conforming contact, then work the support locations with flush cutters or needle files. It's one of the cases that makes the list in projects for makers and finishers.

Sanding Layer Lines on FDM Prints

Sanding FDM layer lines means holding the part stable under lateral force, and many FDM prints are a thin outer shell over sparse infill that excessive clamping will crush. Grip across the thickest, most solid-walled section, use only enough force to stop it slipping, and check for stress marks after the first light passes.

Resin Post-Cure Finishing

Resin is significantly more brittle than FDM and snaps at thin cross-sections under point load. Grip at the thickest section with Sure-Fit jaws at light force. For very delicate pieces, clean leather jaws give an even softer contact surface.

The WorkIQ Edge: Grip, Angle, and Sight Lines Together

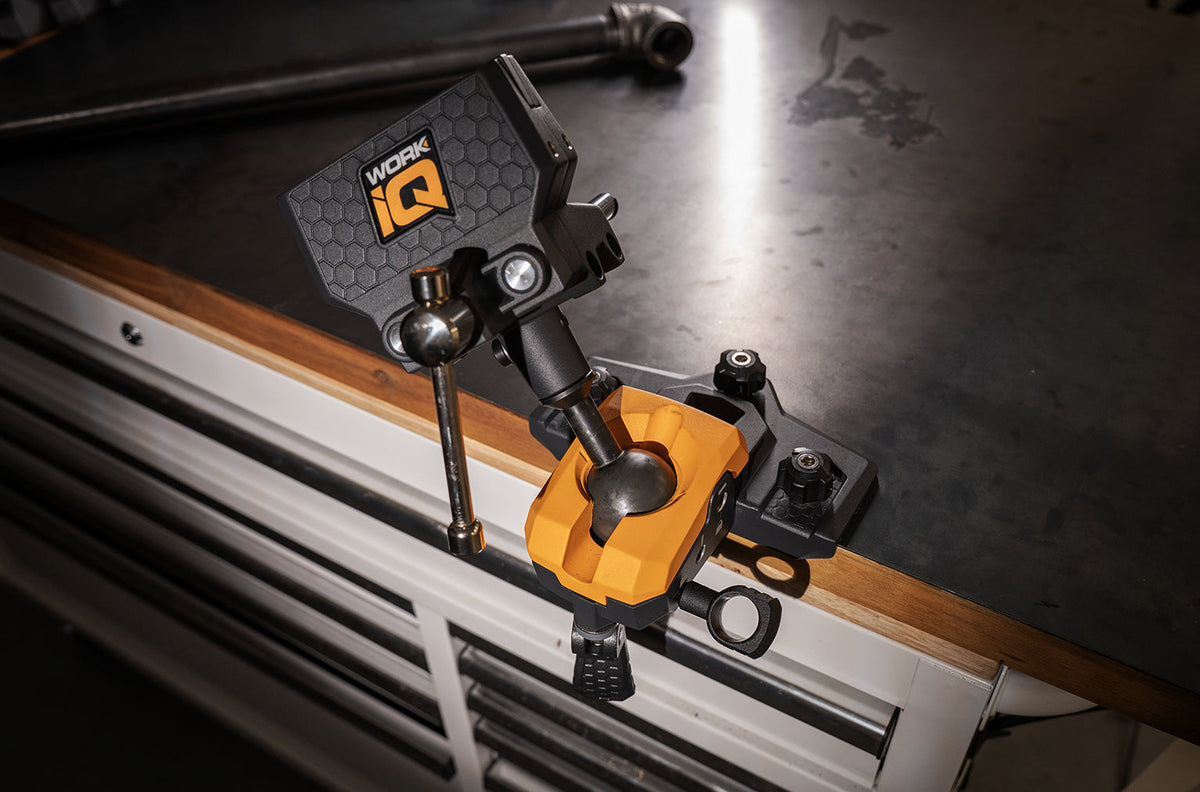

The IQ Vise System is a work-holding platform built on a ball-and-socket articulating base that rotates the workpiece on three axes and locks in any position with a single Quick-Cam™ lever throw. Small parts work is where that pays off most, because the piece is too small and too fragile to keep re-gripping — every re-clamp is another chance to deform it, and another loss of the registration you just established.

In Summary: Small parts are held by friction and contact area, not pressure. Anti-slip conforming jaws such as Sure-Fit grip a ring, a casting, or a printed part at a fraction of the force a flat steel jaw would need, which is the difference between a part that survives finishing and one that doesn't. Unlike a fixed vise, where reaching a new face means unclamping a piece you can barely handle, the IQ Vise System's ball-and-socket base brings the next angle to you in one lever throw while the part never leaves the jaw.

Improving Visibility at Small Parts Work

Small parts work almost always needs better light than a standard shop ceiling fixture provides, and the gap between clearly seeing a part and squinting at it shows up in both accuracy and speed. A task light mounted at the vise sits inches from the work rather than aiming down from across the room; pair it with a loupe or a mounted magnifier for very fine work. The mounting options are covered in hands-free magnifier and lighting, and the hardware lives in the IQ Connect range.

Jaw and Force Guide for Small Parts

Part type	Jaw	Clamping force
Gold / silver ring bands	Sure-Fit	Snug — no wiggle, no deformation
Pendants, brooches, flat stock	Leather or padded Sure-Fit	Light, gripped from the sides
Small castings for filing	Sure-Fit	Moderate, at the sturdiest section
FDM prints (shell over infill)	Sure-Fit	Light, across solid-walled areas only
Resin prints	Sure-Fit or leather	Very light, thickest section only
Electronic connectors, fittings	Sure-Fit	Light — enough to resist solder-iron pressure

Frequently Asked Questions

How do jewelers hold small parts for work?

Jewelers use a combination of bench pins, handheld ring clamps, and vise setups for larger components. For vise work, anti-slip conforming jaws such as Sure-Fit at low clamping force give the best grip without deforming soft metals.

What is the best way to hold small parts in a vise?

Use Sure-Fit or other conforming jaws with an anti-slip surface. They hold at lower clamping force than smooth jaws require, which is essential for small parts that would deform under high pressure. Position the piece so that as much of its surface as possible is in contact with the jaw.

How do I hold 3D printed parts for finishing?

Grip at the thickest, most structurally solid section using conforming jaws at light clamping force. For FDM prints, avoid clamping across sections that are only a thin outer shell over infill. For resin prints, avoid any point-load contact on thin cross-sections.

Can you use a bench vise for jewelry making?

Yes, for certain tasks. Component fitting, bezel setting, soldering setup, and finishing all work well in a bench vise with soft or anti-slip jaws. The vise acts as a stable, hands-free third hand for anything that needs the piece to stay completely still.

Why does my small part slip even when the vise is tight?

Because grip comes from friction and contact area, not clamping pressure. A flat steel jaw touches a small irregular part at two points, so tightening increases the load at those two points without adding contact anywhere else — it deforms the part before it secures it. A conforming anti-slip jaw adds contact rather than pressure, which is why it holds at a fraction of the force.
