Sheet Metal Work Holding: Why Angle Matters
Key Takeaway: Sheet metal work holding is an angle problem, not a grip problem. Flat jaws hold flat sheet fine — what costs you time is presenting the working edge at the correct angle for each operation. Clamp 1 to 2 inches back from the edge you are working on, hold the sheet vertically to file an edge flat, and tilt the piece to match the joint or bevel angle rather than changing your own body position.
The Old Way: Shim, Re-Clamp, Repeat
You clamp the sheet flat to deburr a straight edge. Fine. Then you need to file a diagonal cut, so you unclamp, angle the piece by eye, tighten, and start filing at a compensating angle that produces an uneven edge. Then you need to grind a weld flush on a formed piece, so you unclamp again and start stacking scrap under one corner to prop it where you need it. By the time the part is done you have re-clamped four times and the vise never actually did the work of holding it where you wanted it.
How Does Angle Affect Sheet Metal Operations?
Every common sheet metal bench operation happens at or near an edge, and each one has a preferred presentation angle. Get the angle right and the tool does the work; get it wrong and your hands compensate.
Filing and Deburring
To file an edge flat, position the edge so the file travels parallel to the bench surface. That means holding the sheet vertically with the edge facing up. For a diagonal cut across a sheet, tilt the piece to match the cut angle — deburring a diagonal edge in a fixed horizontal grip forces you to keep changing your file angle, which produces an inconsistent edge.
Grinding Welds
Grinding a weld flush means presenting the welded surface face-up to the grinder at a consistent, comfortable angle. When the joint is anything other than flat and horizontal, a tilting vise brings the surface to you instead of making you contort around the work — which matters for both edge consistency and your back.
Fitting and Tack Welding
Fitting two pieces before welding means holding them in correct relative position while you tack. A vise that tilts to match the joint angle removes the brace-and-shim step entirely, which is where most fit-up error creeps in.
Work-Holding Setup for Sheet Metal
For Flat Sheet: Standard Hard Jaws Work
For flat operations — deburring a straight edge, filing a flat surface — standard flat jaws grip well. The key is clamping enough sheet surface that the piece doesn't flex under working pressure. Do not clamp on the very edge of the sheet; you will crush it and lose material. Clamp 1 to 2 inches back from the edge you're working.
For Angled Cuts and Formed Geometry
This is where a multi-axis vise earns its keep. To file a 45° cut edge flat, tilt the vise until the edge sits horizontal. To work a formed or bent piece, rotate the vise to present each face at its correct working angle without ever unclamping. For a task like weld fit-up, where you'll reposition three or four times in an hour, that is the difference between working and setting up.
The WorkIQ Edge: Angle Without Re-Clamping

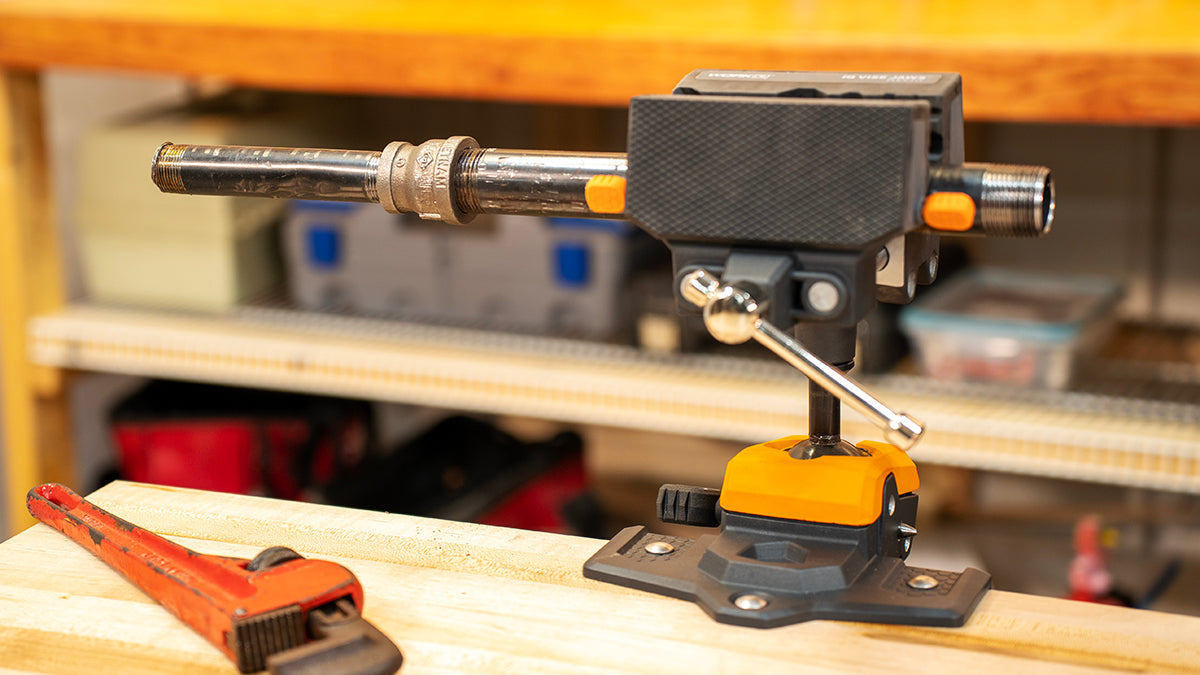

The IQ Vise System is a work-holding platform built on a ball-and-socket articulating base that rotates the workpiece on three axes and locks in any position with a single Quick-Cam™ lever throw. For sheet metal specifically, that means the angle change is one motion — loosen, position, lock — instead of unclamp, shim, re-clamp, re-check.
Jaw selection handles the damage side of the problem. IQ Vise Jaws – Leather protect galvanized coatings and aluminum sheet that has to stay cosmetically clean, while IQ Vise Jaws – Flex-Fit spread clamping load across formed or non-flat sections that a hard jaw would crease. The full range is in the IQ Vise Jaws collection.
In Summary: Sheet metal work holding comes down to angle control and load distribution. Clamp back from the working edge, present the edge horizontal for filing and face-up for grinding, and match the head angle to the joint for tack welding. Unlike a fixed bench vise that forces you to shim the piece or move your body, the IQ Vise System's ball-and-socket base repositions the sheet in one lever throw — which is why an hour of fit-up work loses minutes to setup instead of a third of the job.
Preventing Sheet Metal Damage in the Vise
| Material | Risk | Setup |
|---|---|---|
| Thin sheet (18 ga or lighter) | Permanent dent at the jaw line | Back with a wide flat bar; use wider jaws |
| Galvanized / coated steel | Soft zinc coating marks easily | Leather or rubber jaw liner |
| Aluminum sheet | Dents under steel jaws at moderate force | Leather jaws; moderate clamping force |
| Formed or bent sections | Creasing at the contact point | Conforming Flex-Fit jaws |
| Any sheet, working the edge | Crushed edge, lost material | Clamp 1–2 inches back from the edge |
Frequently Asked Questions
How do I hold sheet metal for grinding or filing?
Clamp the sheet 1 to 2 inches back from the working edge so the jaw does not crush the edge you are working on. To file an edge flat, hold the sheet vertically with the edge facing up so the file travels parallel to the bench. To grind a weld flush, tilt the vise so the welded surface faces up toward the grinder. A multi-axis vise makes those angle changes fast between operations.
What is the best vise for sheet metal work?
For most sheet metal bench work, any solid bench vise with flat jaws grips adequately. The real value of an articulating multi-axis vise is angle adjustment: tilting the piece for filing, deburring, or weld fitting without unclamping and re-registering it.
How do I hold sheet metal for welding?
For tack welding, position the piece so both surfaces to be joined are accessible from your welding angle. On a flat bench vise this usually means shimming the piece to the correct angle. On a multi-axis vise, tilt the head to match the joint angle and lock it.
Can sheet metal be clamped in a bench vise?
Yes. Clamp back from the working edge to avoid crushing or denting it. For thin sheet of 18 gauge or lighter, use wider jaws or a backup bar to distribute clamping force. Soft or coated sheet benefits from leather or rubber jaw pads.
How do I keep the vise from denting sheet metal?
Thin sheet deforms under point loads, so the jaw edge can leave a permanent line at the clamp point. Back the piece with a wide flat bar, use wider jaws to spread the load, and switch to leather jaws for galvanized, coated, or aluminum sheet that has to stay cosmetically clean.
